Frequency-selection FWI, 2-D

RUNS=examples/synthetic/sweep_runs
sweep-tasks run examples/synthetic/11_forward_freqsel_nodes.yaml
sweep-tasks extract-coeff $RUNS/forward_freqsel_nodes --n-p 50000 --k-lo 50 --k-hi 150 -o $RUNS/coeff_1_3hz.npz
sweep-tasks extract-coeff $RUNS/forward_freqsel_nodes --n-p 25000 --k-lo 50 --k-hi 150 -o $RUNS/coeff_2_6hz.npz
sweep-tasks extract-coeff $RUNS/forward_freqsel_nodes --n-p 17000 --k-lo 68 --k-hi 170 -o $RUNS/coeff_4_10hz.npz
sweep-tasks run examples/synthetic/12_fwi_marmousi_freqsel.yaml

Three steps rather than one, because this method inverts pre-extracted frequency coefficients, not gathers. Every node of the array radiates its own comb frequency continuously; the DFT of a steady-state window separates them exactly, so the whole array rides one forward per iteration with deterministic zero crosstalk (Tromp & Bachmann, 2019).

The misfit is a per-node complex-cosine coherence, invariant to any per-node complex scale — which is why there is no wavelet: in the inversion YAML at all. Source spectrum, excitation delay and sensor coupling are all complex scales, and they cancel.

Step 1 — record the node gathers (11)

11 uses OBN reciprocity: the 100 nodes are the sources and the shot positions are the receivers, which is the layout the encoding needs. Its record is 2.7 GB. In a field project this file does not exist — real node gathers replace it, and everything downstream is identical.

Reference (RTX 6000 Ada, seed 0): forward 76 s.

Step 2 — extract one shard per rung (extract-coeff)

Extraction is a DTFT of a record that already exists, so the frequencies a project can invert are set by the source spectrum, not by how many forwards you run. One forward feeds the whole ladder — the Ricker in 11 is fm: 5.0, chosen to cover 1–10 Hz rather than to peak on the first rung. Each rung gets its own shard because the inversion refuses one whose bins disagree with the stage reading it: --n-p must equal that stage's probe_samples.

Reference: 45 s / 15 s / 15 s for the three extractions.

Step 3 — invert (12)

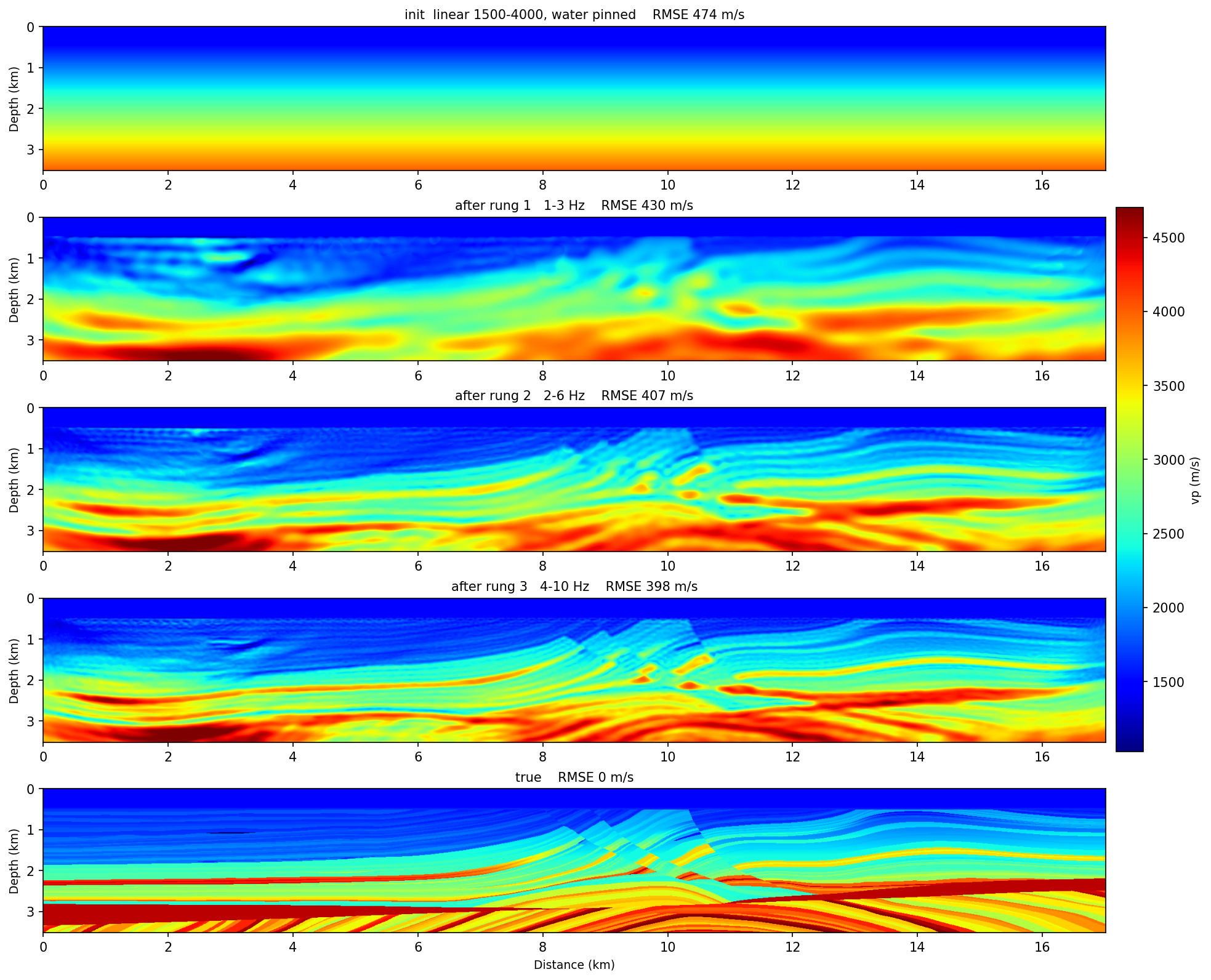

Reference (RTX 6000 Ada, seed 0), 240 iterations, 11.9 min:

after	RMSE vs true
init (same 1-D ramp as 03)	473.7
rung 1 — 1–3 Hz	429.6
rung 2 — 2–6 Hz	406.5
rung 3 — 4–10 Hz	397.9

r = 0.575; low-wavenumber RMSE 321.6 → 243.4.

Against conventional FWI, at equal cost

	solver steps	wall	RMSE	r
03, conventional	16.0 M	11.5 min	317.3	0.752
12, freqsel	10.5 M	11.9 min	397.9	0.575

Conventional FWI wins here and this page does not pretend otherwise. On Marmousi the wavelet is known exactly, so the wavelet-free property is worth nothing. On a field OBN survey — unknown source signature, unknown per-node coupling — it is the difference between having a workflow and not.

Sizing a comb: bins are the currency, not shots

Two relations govern every number in the frequency: blocks:

bins  =  bandwidth × window length          (window = probe_samples × dt)
pool size  ≤  bins                          (hard constraint)

Extra sources ride the same forward for free, so the way to fire more nodes at once is to lengthen the analysis window, which buys bins linearly. Note the consequence: the window shortens as the ladder climbs, because a wider band reaches the same bin count in less time. The expensive rung is the lowest one.

Each iteration runs steady_samples + slack_samples + probe_samples steps. steady_samples is dead time while the continuous sources ring up; the runner prints a two-window steady-state check at every stage entry, and the target is ≤ 1e-2.

Two things that cost real runs to learn:

• Start the ladder low enough. 03's criterion applies unchanged: this 1-D start is −160 ms off at 2 km, so the first rung must sit below 3.1 Hz. A 2–4 Hz first rung rides that line and reproducibly fails — it drove the model away from the truth (RMSE 473.7 → 520.8) while the misfit fell 3.2×.
• Size the PML by the longest wavelength, not by habit. At 1 Hz the wavelength is ~1500 m and the default abcn: 20 is only 250 m — λ/6. A continuous-wave field in a leaky box builds standing waves, and unlike a transient that does not cancel between a transient obs and a steady-state syn. abcn: 40 (in both 11 and 12) puts the 1–3 Hz rung's steady-state check at 5.9e-3.
