Frequency-selection FWI, 3-D¶

RUNS=examples/synthetic/sweep_runs
sweep-tasks run examples/synthetic/13_forward_freqsel_nodes_3d.yaml
sweep-tasks extract-coeff $RUNS/forward_freqsel_nodes_3d --n-p 16000 --k-lo 64 --k-hi 128 -o $RUNS/coeff_3d_1_2hz.npz
sweep-tasks extract-coeff $RUNS/forward_freqsel_nodes_3d --n-p 8000  --k-lo 64 --k-hi 128 -o $RUNS/coeff_3d_2_4hz.npz
sweep-tasks run examples/synthetic/14_fwi_overthrust_freqsel_3d.yaml

The 2-D pipeline on SEG/EAGE Overthrust, where the encoding changes what is affordable: 64 nodes fire together out of 65 bins, every iteration.

Needs network on the first run — overthrust:3d-acoustic is a ~175 MB download cached under ~/.cache/sweep-datasets (CC-BY-4.0). On a cluster whose compute nodes have no outbound network, run 13 once on a login node or pre-stage $SWEEP_DATASETS_CACHE. 14 also needs a ≥ 48 GB GPU as written: the first rung's 64 s analysis window is 19,250 time steps and peaks at 43.8 GB even with boundary saving. On a 40 GB card use boundary: { storage: cpu }.

13 — record the node gathers¶

geometry.kind: grid is the 3-D counterpart of kind: line: a rectangular patch of sources and one of receivers from start/stop/step rules, so a 2401-channel survey is six lines of YAML instead of 2401. 64 nodes on an 8 × 8 patch at 2.4 km, 2401 surface positions on a 49 × 49 patch at 400 m.

downsample: 4 takes the 801 × 801 × 187 model at 25 m to 201 × 201 × 47 at 100 m — 20.1 × 20.1 × 4.7 km, 1.9 M cells. record.npy is 1.84 GB.

Reference (RTX 6000 Ada, seed 0): forward 96 s, extractions 23 s and 12 s.

14 — invert¶

Reference: 35 min, RMSE 644.1 → 512.3, r = 0.309.

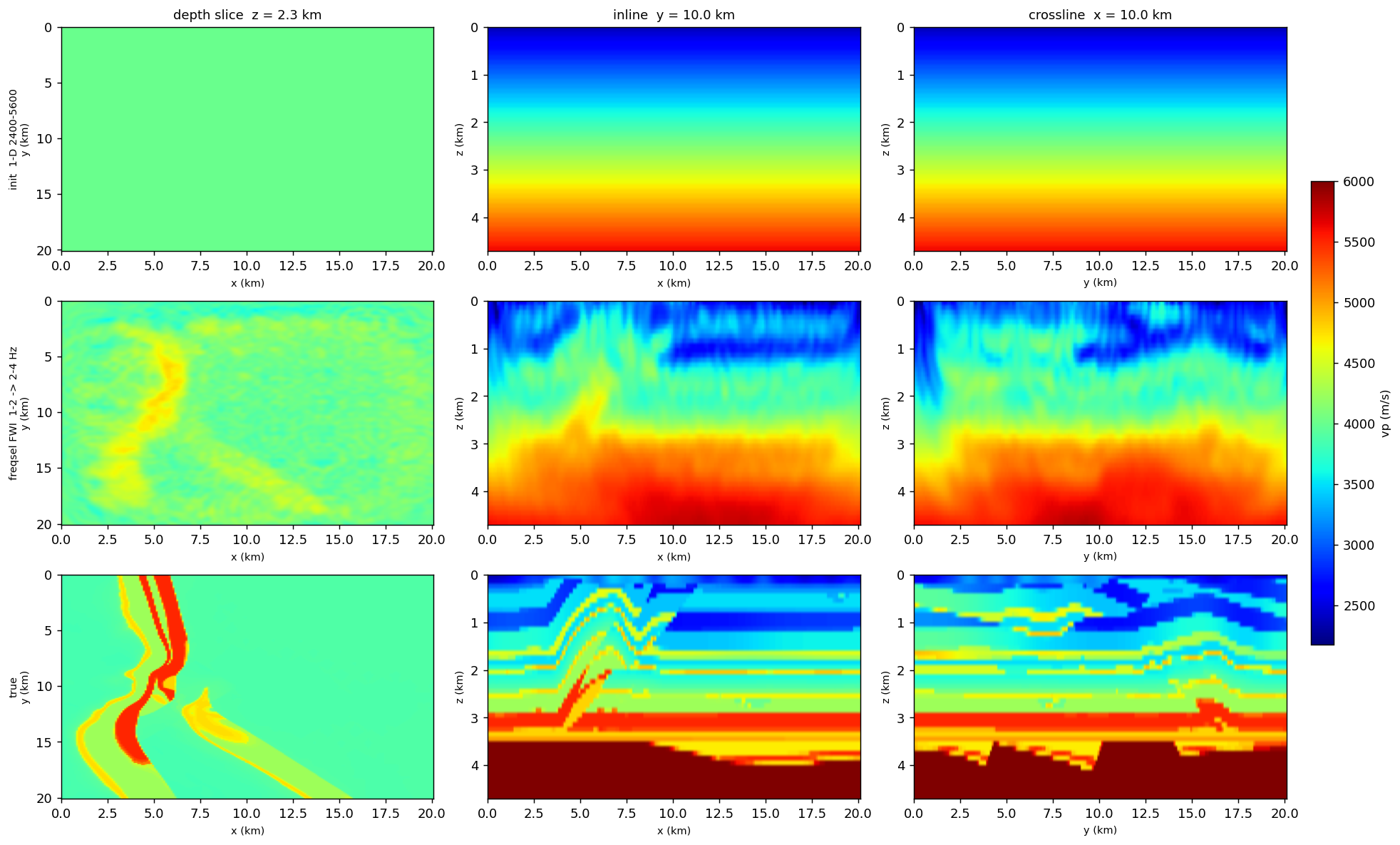

3-D freqsel

The thrust comes out in the right place — the depth slice recovers the curved high-velocity ridge at x ≈ 5 km and its branch, and the basement topography at 3–3.5 km tracks the truth — and it is visibly smooth.

That smoothness is the band, not the tuning. The grid caps it: 2179 m/s at 100 m cells puts five points per wavelength at 4.4 Hz, and 2–4 Hz at 4000 m/s is a 1–2 km wavelength, so half-wavelength resolution is 500 m – 1 km against tens of metres of true layering. Where the 2-D ladder climbs to 10 Hz on a 12.5 m grid, this one has nowhere to go. The only lever is a finer grid — downsample: 2 doubles the ceiling and costs about 16× per iteration, which is a multi-GPU job rather than an example.

A cold start matters even more here than in 03, for a reason that is easy to get backwards. Starting 14 from smooth_sigma_cells: 6 — the standard-looking choice — makes the example badly posed: 600 m of smoothing is already correct everywhere a 1–4 Hz band can see, so there is nothing to gain and the run degraded a good model (RMSE 402.6 → 431.5). The 1-D ramp it uses instead leaves real low-wavenumber error (503.0) for those frequencies to work on.
